Access Stock Overview using Batch Input

This sample shows how to execute the SAP transaction MMBE (stock overview) using the Transaction class.

About

In this application the user can enter a material number and the name of a plant.
By clicking a button, the SAP GUI is launched and the transaction MMBE (stock overview) is executed to list the entered materials and plants.

Call-Transaction-002

Tip

The installation package of ERPConnect includes the Transaction-Recorder tool. This tool records transactions and implements them to code, see Transaction-Recorder.

Call Transaction MMBE

The following sample code executes the SAP transaction MMBE (stock overview):

Execute SAP Transaction MMBE
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
using System;
using ERPConnect;
using ERPConnect.Utils;

// Set your ERPConnect license
LIC.SetLic("xxxx");

using var connection = new R3Connection(
    host: "server.acme.org",
    systemNumber: 00,
    userName: "user",
    password: "passwd",
    language: "EN",
    client: "001")
{
    Protocol = ClientProtocol.NWRFC,
    UseGui = true,
};

connection.Open();

Console.Write("Material: ");
string material = Console.ReadLine();

Console.Write("Plant: ");
string plant = Console.ReadLine();

var transaction = new Transaction(connection)
{
    ExecutionMode = TransactionDialogMode.ShowAll,
    TCode = "MMBE"
};

transaction.AddStepSetNewDynpro("RMMMBEST", "1000");
transaction.AddStepSetOKCode("ONLI");
transaction.AddStepSetCursor("MS_WERKS-LOW");
transaction.AddStepSetField("MS_MATNR-LOW", material);
transaction.AddStepSetField("MS_WERKS-LOW", plant);

// run
transaction.Execute();

Input:

Material: 100-100
Plant: 1000

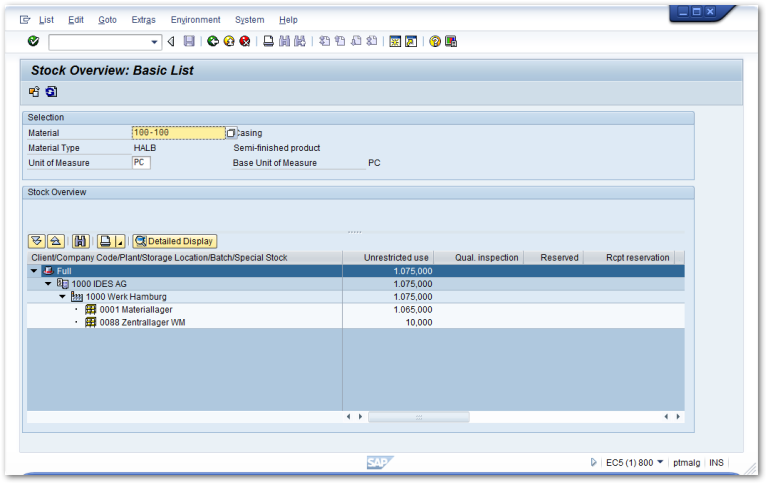

Output:

MMBE1_kl
