Xtract Table
This page shows how to use the Xtract Table component.
The Xtract Table component can be used to extract data from SAP Tables and Views.
Supported SAP Objects
- Transparent tables
- Views
- ABAP CDS Views (without parameters)
- HANA CDS Views
- Pool tables (joining not possible)
- Cluster tables (joining not possible)
RFC_READ_TABLE Restrictions
Especially with older SAP releases you may encounter a few restrictions when using the SAP standard function module (RFC_READ_TABLE) for table extraction:
- The overall width of all columns to be extracted must not exceed 512 bytes.
- It is not possible to extract data from tables that contain one or more columns of the data type f (FLTP, floating point), DEC (decimal, e.g. for percentage) or x (RAW, LRAW).
- Poor extraction performance with larger tables. Can cause also duplicates.
- Depending on the SAP version there may be other restrictions.
When facing restrictions, install the Theobald Software custom function module /THEO/READ_TABLE on your SAP system.
Warning
Converting issues
Error while converting value '*.0' of row 1530, column 3.
The SAP standard module RFC_READ_TABLE for table extraction can only extract the ABAP data type DEC to a limited extent. This leads to the mentioned example error during extraction. Use the function module /THEO/READ_TABLE.
Prerequisites
- A connection to an SAP system is available, see SAP Connection.
- The SAP user has sufficient user rights, see SAP Authority Objects.
Warning
Missing Authorization.
To use the Xtract Table component, access to the designated authority objects (RFC) in SAP must be available. Adjust SAP Authority Objects accordingly.
Add an Xtract Table Component
Follow the steps below to add an Xtract Table component to your workflow:
- Drag & drop the Xtract component to your Alteryx workflow .
- Assign an existing SAP connection .
- Click [ Edit] to open the main window of the component.
The majority of the functions of the component can be accessed in the main window.
Look up an SAP Table
- In the main window of the component, click [Add] to add a table. The window "Table Lookup" opens.
- In the field Table Name, enter the name of the table to extract . Use wildcards (*) if needed.
- Click [ ] . Search results are displayed.
- Select a table and click [OK].
All relevant metadata information of the table is retrieved from SAP. The application returns to the main window of the component.
Define the Xtract Table Component
The Xtract Table component offers the following options for table extractions:

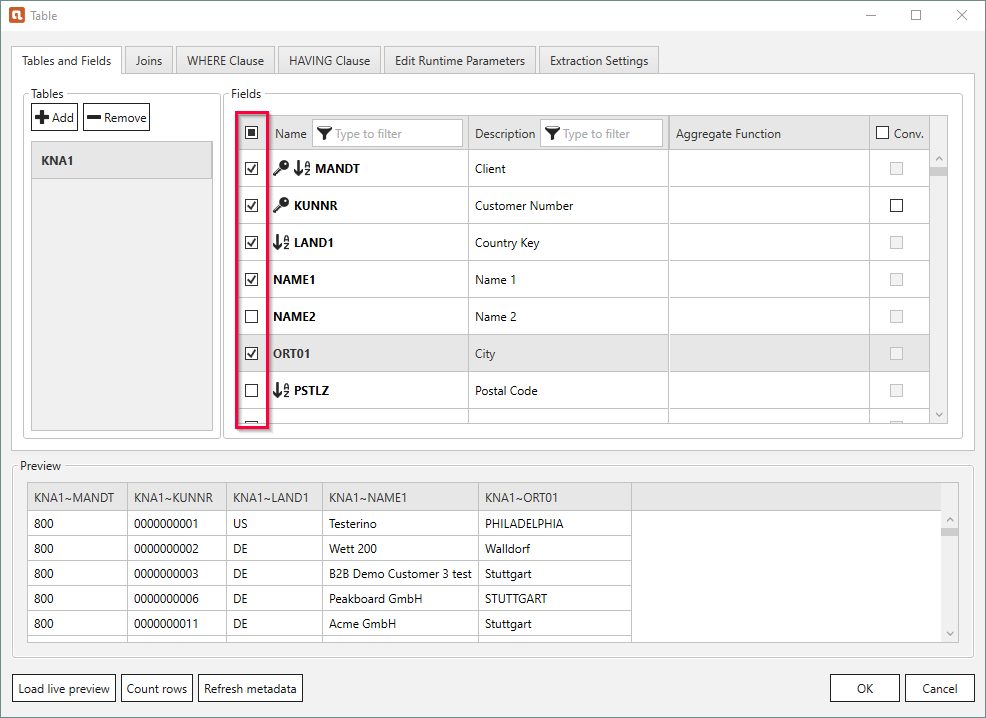

- Select the columns you want to extract. By default all columns are selected. Deselect the columns you do not want to extract.
- Optional: Define a WHERE clause or a HAVING clause to filter table records. By default all data is extracted.
- Optional: Join two or more tables and extract the result of the join. For more information, see Table Joins.
- Click [Load live preview] to display a live preview of the first 100 records.
- Check the Extraction Settings before running the workflow.
- Click [OK] to save the component.
- Optional: Check the column name style and date conversion options in the tool configuration of the component.
You can now run the workflow.
