Xtract Table

This page shows how to use the Xtract Table component.
The Xtract Table component can be used to extract data from SAP Tables and Views.

Supported SAP Objects

Transparent tables
Views
ABAP CDS Views (without parameters)
HANA CDS Views
Pool tables (joining not possible)
Cluster tables (joining not possible)

RFC_READ_TABLE Restrictions

Especially with older SAP releases you may encounter a few restrictions when using the SAP standard function module (RFC_READ_TABLE) for table extraction:

The overall width of all columns to be extracted must not exceed 512 bytes.
It is not possible to extract data from tables that contain one or more columns of the data type f (FLTP, floating point), DEC (decimal, e.g. for percentage) or x (RAW, LRAW).
Poor extraction performance with larger tables. Can cause also duplicates.
Depending on the SAP version there may be other restrictions.

When facing restrictions, install the Theobald Software custom function module /THEO/READ_TABLE on your SAP system.

Warning

Converting issues
Error while converting value '*.0' of row 1530, column 3.
The SAP standard module RFC_READ_TABLE for table extraction can only extract the ABAP data type DEC to a limited extent. This leads to the mentioned example error during extraction. Use the function module /THEO/READ_TABLE.

Prerequisites

A connection to an SAP system is available, see SAP Connection.
The SAP user has sufficient user rights, see SAP Authority Objects.

Warning

Missing Authorization.
To use the Xtract Table component, access to the designated authority objects (RFC) in SAP must be available. Adjust SAP Authority Objects accordingly.

Add an Xtract Table Component

Follow the steps below to add an Xtract Table component to your SSIS package:

Drag&drop the Xtract Table component from the SSIS toolbox into your data flow task.
Double-click the component. A connection manager is automatically assigned to the component and the main window of the component opens.

Note

If there are multiple connection managers, the window "Select Connection Manager" opens, see SAP Connection. Once a connection manager is selected, the main window of the component opens.

The majority of the functions of the component can be accessed in the main window.

Look up an SAP Table

In the main window of the component, click [Add] to add a table. The window "Table Lookup" opens.
In the field Table Name, enter the name of the table to extract . Use wildcards (*) if needed.
Click [ ] . Search results are displayed.
Select a table and click [OK].

All relevant metadata information of the table is retrieved from SAP. The application returns to the main window of the component.

Define the Xtract Table Component

The Xtract Table component offers the following options for table extractions:

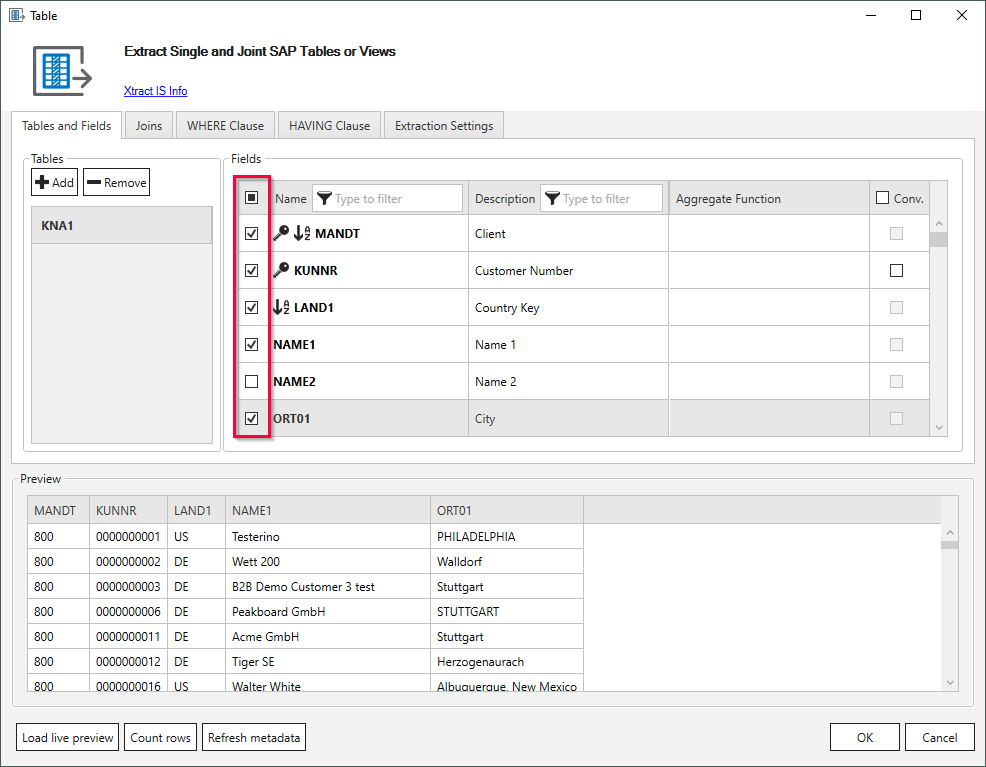

Select the columns you want to extract. By default all columns are selected. Deselect the columns you do not want to extract.
Optional: Define a WHERE clause or a HAVING clause to filter table records. By default all data is extracted.
Optional: Join two or more tables and extract the result of the join. For more information, see Table Joins.
Click [Load live preview] to display a live preview of the first 100 records.
Check the Settings before running the SSIS package.
Click [OK] to save the component.

You can now run the SSIS package.
