Table

This page shows how to use the Table extraction type.
The Table extraction type can be used to extract data from SAP Tables and Views.

Supported SAP Objects

  • Transparent tables
  • Views
  • ABAP CDS Views (without parameters)
  • HANA CDS Views
  • Pool tables (joining not possible)
  • Cluster tables (joining not possible)

RFC_READ_TABLE Restrictions

Especially with older SAP releases you may encounter a few restrictions when using the SAP standard function module (RFC_READ_TABLE) for table extraction:

  • The overall width of all columns to be extracted must not exceed 512 bytes.
  • It is not possible to extract data from tables that contain one or more columns of the data type f (FLTP, floating point), DEC (decimal, e.g. for percentage) or x (RAW, LRAW).
  • Poor extraction performance with larger tables. Can cause also duplicates.
  • Depending on the SAP version there may be other restrictions.

When facing restrictions, install the Theobald Software custom function module /THEO/READ_TABLE on your SAP system.

Warning

Converting issues
Error while converting value '*.0' of row 1530, column 3.
The SAP standard module RFC_READ_TABLE for table extraction can only extract the ABAP data type DEC to a limited extent. This leads to the mentioned example error during extraction. Use the function module /THEO/READ_TABLE.

Prerequisites

Warning

Missing Authorization.
To use the Table extraction type, access to the designated authority objects (RFC) in SAP must be available. Adjust SAP Authority Objects accordingly.

Create a Table Extraction

  1. In the main window of the Designer, click [New] to create a new extraction. The window "Create Extraction" opens.
    New
  2. Select an SAP Connection from the drop-down menu in Source and enter a unique name for your extraction.
  3. Select the extraction type Table and click [OK]. The main window of the extraction type opens automatically.

The majority of the functions of the extraction type can be accessed in the main window.

Look up an SAP Table

  1. In the main window of the extraction type, click [Add] to add a table. The window "Table Lookup" opens.
    table_main-window_add
  2. In the field Table Name, enter the name of the table to extract . Use wildcards (*) if needed.
    Look-Up-Table
  3. Click [ ] . Search results are displayed.
  4. Select a table and click [OK].

All relevant metadata information of the table is retrieved from SAP. The application returns to the main window of the extraction type.

Define the Table Extraction Type

The Table extraction type offers the following options for table extractions:

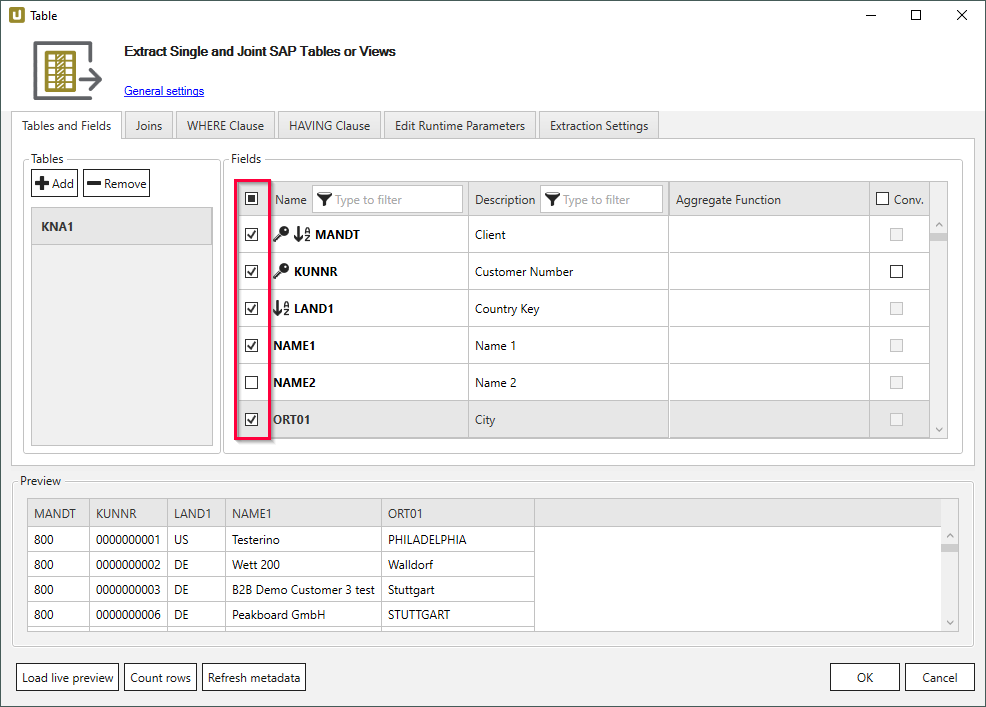

  1. Select the columns you want to extract. By default all columns are selected. Deselect the columns you do not want to extract.
    Table-Form
  2. Optional: Define a WHERE clause or a HAVING clause to filter table records. By default all data is extracted.
  3. Optional: Join two or more tables and extract the result of the join. For more information, see Table Joins.
  4. Click [Load live preview] to display a live preview of the first 100 records.
  5. Check the Extraction Settings and the General Settings before running the extraction.
  6. Click [OK] to save the extraction type.

You can now run the extraction, see Execute and Automate Extractions.
