Post-Processing Column Name Style

The following section describes a common business scenario to rename column name styles within the Microsoft SQL-Server environment. The given example shows how to use Custom SQL in the Finalization step of the database transaction within the Xtract Universal destination settings.

About Column Name Styles

Xtract Universal offers 4 different Column Name Styles for naming the SAP table columns in databases:

• Code - [FieldName]
• Prefixed Code - [TabName]~[FieldName]
• CodeAndText - [FieldName]_[FieldDescription]
• TextAndCode - [FieldDescription]_[FieldName]

The depicted example uses the Column Name Style 'Prefixed Code', which connects each table field in the format [TabName][ColumnName] with the SAP standard separator '~'. This naming of table columns is mainly used for table joins, because identical column identifiers exist in the different tables. A typical example is the table join of 'EKKO' (Purchasing Document Header) and 'EKPO' (Purchasing Document Item). Both tables have the following identical column descriptions:

• 'MANDT'
• 'EBELN'

When selecting the standard Column Name Style 'Code' in the destination settings, the following error occurs on the SQL side when selecting these fields:

> System.Data.SqlClient.SqlException (0x80131904): Column names in each table must be unique. Column name 'MANDT' in table 'EKKO_JOIN' is specified more than once.

Adjust Standard Separator using Custom SQL

Follow the steps below to adjust SAP standard separator from '~' to '_':

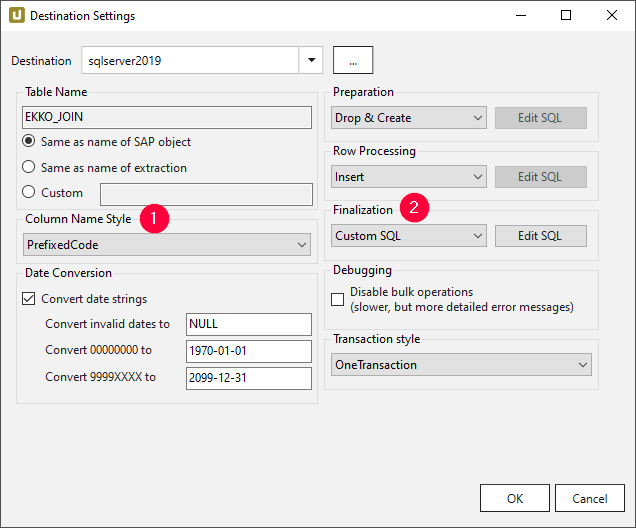

1. Adjust the Column Name Style e.g. 'PrefixedCode' .

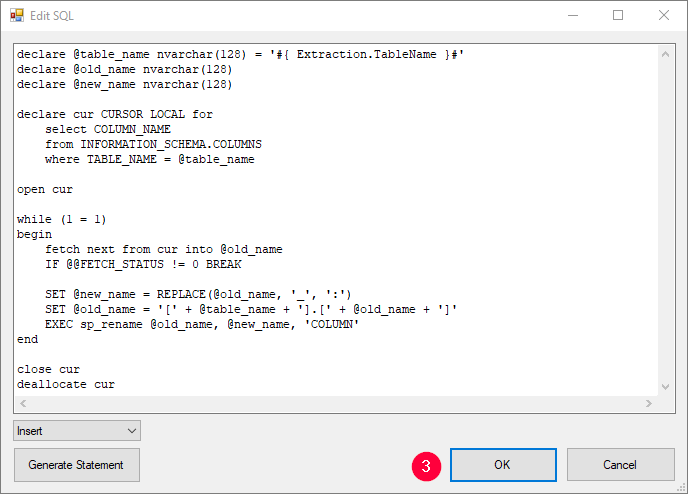

2. Insert the generic SQL Code below into the Finalization step using [Edit SQL].


   declare @table_name nvarchar(128) = '#{ Extraction.TableName }#'
   declare @old_name nvarchar(128)
   declare @new_name nvarchar(128)

   declare cur CURSOR LOCAL for
       select COLUMN_NAME
       from INFORMATION_SCHEMA.COLUMNS
       where TABLE_NAME = @table_name

   open cur

   while (1 = 1)
   begin
       fetch next from cur into @old_name
       IF @@FETCH_STATUS != 0 BREAK

       SET @new_name = REPLACE(@old_name, '~', '_')
       SET @old_name = '[' + @table_name + '].[' + @old_name + ']'
       EXEC sp_rename @old_name, @new_name, 'COLUMN'
   end

   close cur
   deallocate cur


3. Click [OK] to confirm your input .


4. Run the extraction.

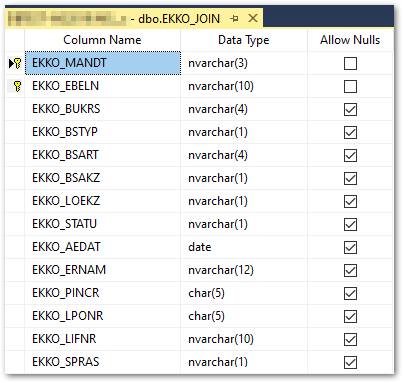

5. Check the Column Name Style changes and results in SQL Server Management Studio (SSMS).


Create Stored Procedure (sp) using SSMS

Create a stored procedure that contains above mentioned T-SQL code for renaming column name styles and call this stored procedure in the Finalization step of the destination settings. This approach allows to easily change the renaming logic within the DB or SQL server instance. You only have to adapt the stored procedure instead of each Finalization step.

Follow the steps below to adjust the SAP standard separator from '~' to '_':

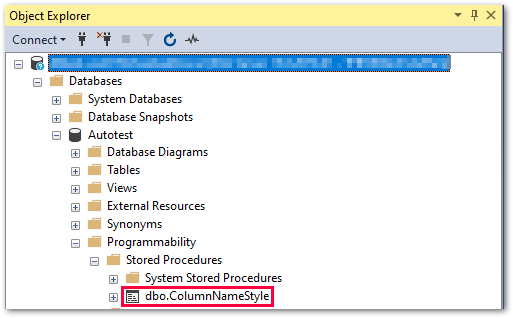

1. Create T-SQL Stored Procedure using SQL Server Management Studio. For more information, see Microsoft Documentation: Create a stored procedure.
2. Assign a name for the Stored Procedure e.g., ColumnNameStyle.


3. Insert the SQL-Code below and [Execute] the statement to save the process.


   CREATE PROCEDURE ColumnNameStyle
       @table_name nvarchar(128)
   AS

   BEGIN

   declare @old_name nvarchar(128)
   declare @new_name nvarchar(128)
   declare cur CURSOR LOCAL for

       select COLUMN_NAME
           from INFORMATION_SCHEMA.COLUMNS
           where TABLE_NAME = @table_name

   open cur
   while (1 = 1)
   begin

       fetch next from cur into @old_name
       IF @@FETCH_STATUS != 0 BREAK
       SET @new_name = REPLACE(@old_name, '~', '_')
       SET @old_name = '[' + @table_name + '].[' + @old_name + ']'
       EXEC sp_rename @old_name, @new_name, 'COLUMN'

   end
   close cur
   deallocate cur

   END


4. Open the destination settings in Xtract Universal and select a Column Name Style, e.g., 'PrefixedCode' .


5. Insert following SQL Code into the Finalization step using [Edit SQL].

   EXEC ColumnNameStyle '#{ Extraction.TableName }#'


6. Click [OK] to confirm your input.


7. Execute the selected extraction and check the Column Name Style changes and results in SSMS.
