Integrate Tables / Views
This page shows how to use the SAP Table and View integration type.
The SAP Table and View integration type can be used to extract data from SAP Tables and Views.
Supported SAP Objects
- Transparent tables
- Views
- ABAP CDS Views (without parameters)
- HANA CDS Views
- Pool tables (joining not possible)
- Cluster tables (joining not possible)
RFC_READ_TABLE Restrictions
Especially with older SAP releases you may encounter a few restrictions when using the SAP standard function module (RFC_READ_TABLE) for table extraction:
- The overall width of all columns to be extracted must not exceed 512 bytes.
- It is not possible to extract data from tables that contain one or more columns of the data type f (FLTP, floating point), DEC (decimal, e.g. for percentage) or x (RAW, LRAW).
- Poor extraction performance with larger tables. Can cause also duplicates.
- Depending on the SAP version there may be other restrictions.
When facing restrictions, install the Theobald Software custom function module /THEO/READ_TABLE on your SAP system.
Warning
Converting issues
Error while converting value '*.0' of row 1530, column 3.
The SAP standard module RFC_READ_TABLE for table extraction can only extract the ABAP data type DEC to a limited extent. This leads to the mentioned example error during extraction. Use the function module /THEO/READ_TABLE.
Prerequisites
- A connection to an SAP system is available, see SAP Connection.
- The SAP user has sufficient user rights, see SAP Authority Objects.
Warning
Missing Authorization.
To use the {{ componentName }} integration type, access to the designated authority objects (RFC) in SAP must be available. Adjust SAP Authority Objects accordingly.

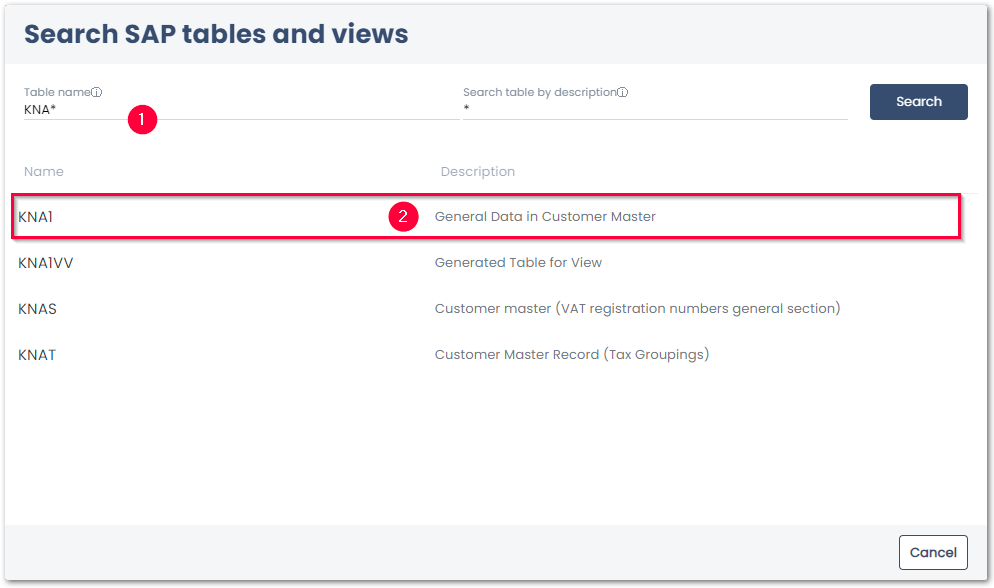

Look Up an SAP Table or View
- Create a new service of integration type SAP Table and View.
- In the Search SAP Table or View menu, enter the name or description of the Table or View to be extracted . Use wildcards ( * ) if needed.
- Click [Search] to display the search results.
- Select a table / view from the list of available search results .
The settings of the SAP Table and View integration type open.
Define the SAP Table and View Service
The following options are available to filter data, add data from other tables, etc:
- Select the output columns you want to extract. By default all columns are selected. Deselect the columns you do not want to extract.
- Optional: Join two or more tables and extract the result of the join. For more information, see Table Joins.
- Optional: Define a WHERE clause to filter table records. By default all data is extracted.
- Optional: Edit the Advanced Settings to define how the data is extracted from SAP.
- Click [Run] to check the results, see Running Services in yunIO.
For more information on SAP Table and View settings, see Settings.
