Sync Microsoft Teams with SAP using Power Automate and yunIO

The following article shows how to use forms in Microsoft Teams to send data to SAP.
In the following scenario, a Teams form is used to transfer an employee's sick leave request to SAP.

About

This article leads you through all necessary steps to set up the following process:

  • When a sick leave is requested via a Microsoft Teams form, a Power Automate workflow is triggered.
  • The workflow starts an approval process.
  • The workflow runs a yunIO service that transfers the details of the sick leave to SAP.

Setup in yunIO

yunIO is the connector that reads and writes data from and to SAP. For more information on yunIO, see Theobald Software: yunIO.
Follow the steps below to set up a yunIO service that creates sick leaves in SAP:

Note

Every type of sick leave requires a designated yunIO service. It is not possible to cover multiple types of sick leave in a single service, because of varying input screens.

Note

The parameters that are needed to create a sick leave are dependent on your customized SAP settings.

  1. Create an SAP connection in yunIO.
  2. Create a service in yunIO. The depicted example uses the integration type Transaction for the service.

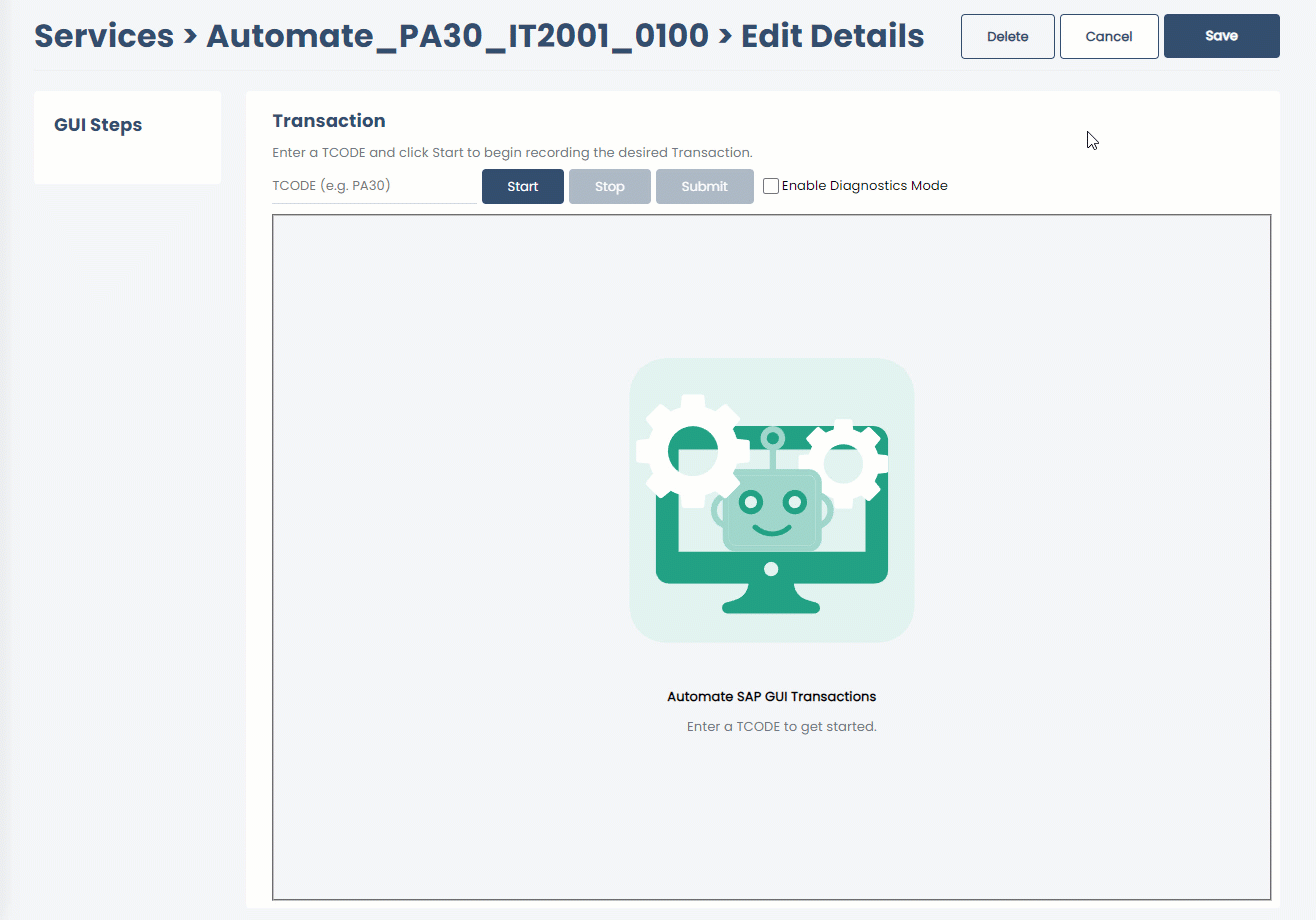

  3. Record the SAP transaction PA30 to create a new sick leave in SAP, e.g., for an annual sick leave (Infotype 2001 and STy 0100).
    yunio-pa30
  4. Set parameters for the following input options. For more information on how to parameterize transactions, see Documentation: Parameterize Transactions.
    • Employee number
    • Start date of the sick leave
    • End date of the sick leave
  5. Click [Save] to save the service.
  6. Click to testrun the service in yunIO . For more information, see Documentation: Run Services in yunIO.
  7. Click to download the service definition .
    yunio-Services-Function-Download
  8. Repeat steps 3 to 7 to create a service for every relevant type of sick leave:
    • Illness with certificate (Infotype 2001 and STy 0200)
    • Parental leave (Infotype 2001 and STy 0600)
    • Unpaid leave (Infotype 2001 and STy 0620)
    • Sick child (Infotype 2001 and STy 0550).

Setup in Microsoft Teams

The setup in Teams requires the installation of the Teams app Team Forms from the Microsoft Teams app store.

  1. Open the Team Forms template "Sick Leave Request".

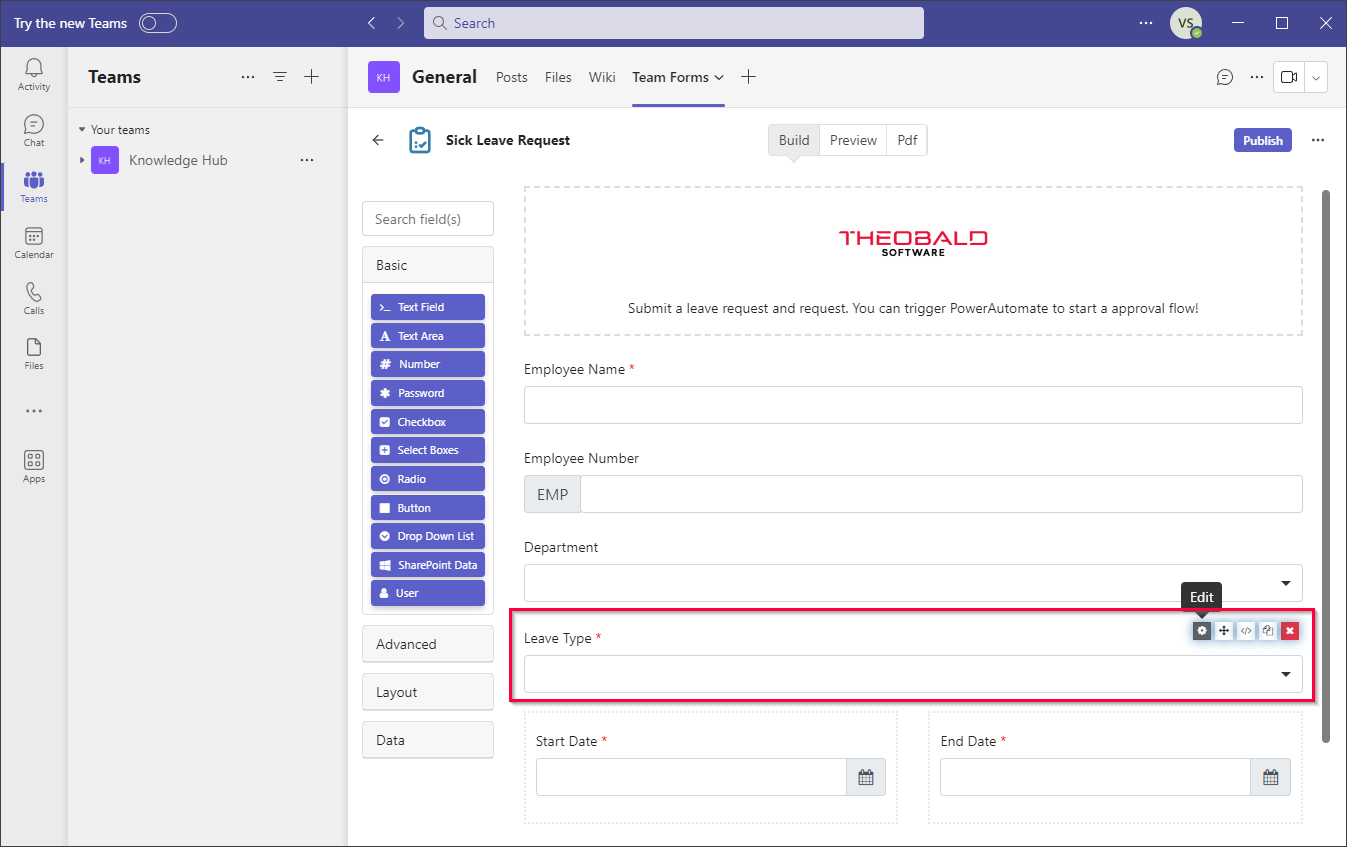

  2. Open the editor for the mandatory input field Leave type.
    teams-form-edit

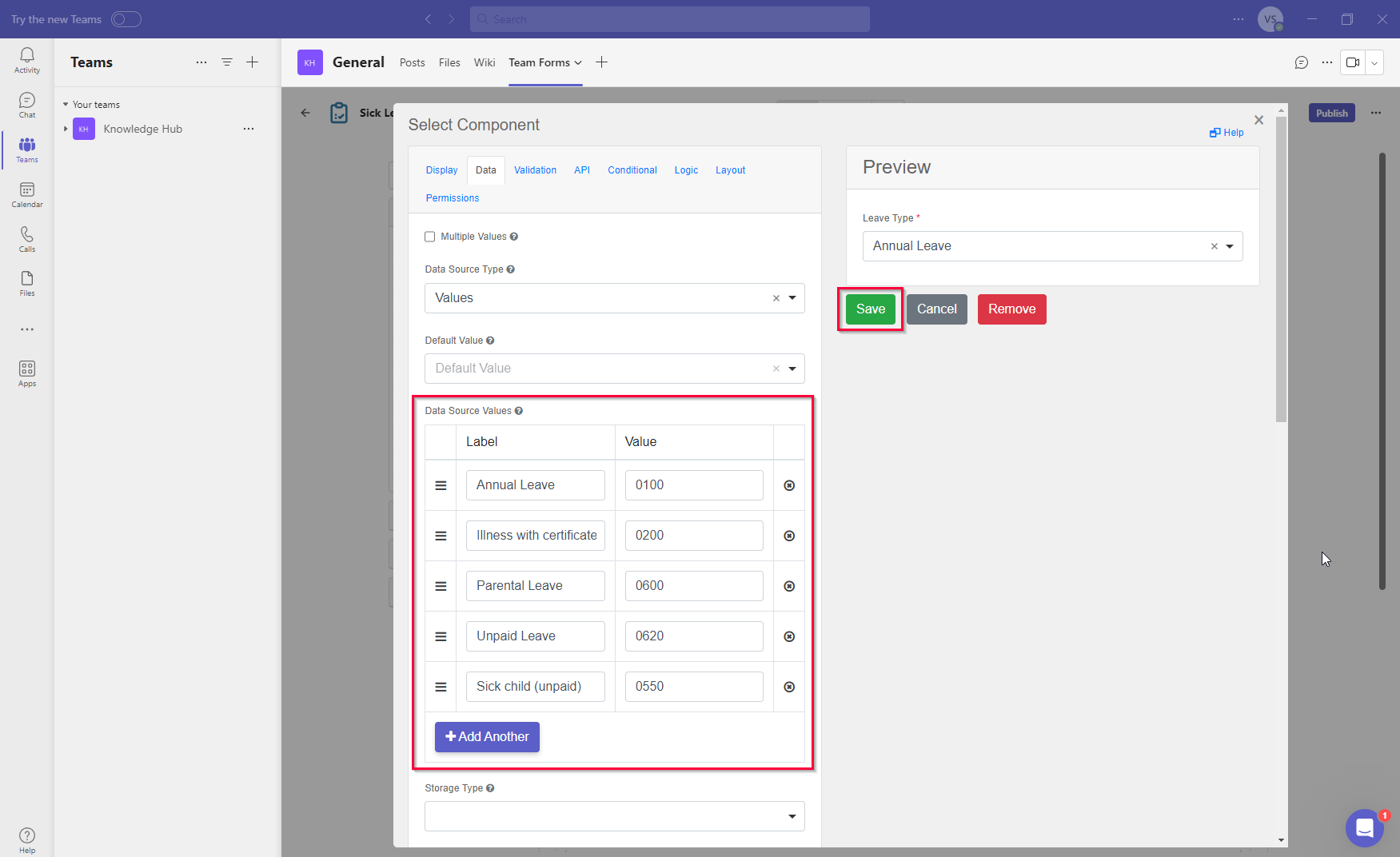

  3. Navigate to the tab Data and edit the labels and values of Leave type to provide the following SAP input:

    Leave Type Value
    Annual Leave 0100
    Illness with certificate 0200
    Parental Leave 0600
    Unpaid Leave 0620
    Sick child (unpaid) 0550
  4. Click [Save] to save the changes.
    teams-form-leave

  5. Optional: Further edit the form to fit the requirements of your organization.
  6. Click [Publish] to make the form available to your team.

For more information on Team Forms, see Team Forms Documentation.

Setup in Power Automate

  1. Integrate the yunIO services created in Setup in yunIO as Custom Connectors in Power Automate, see Integrate a yunIO Service with Power Automate.
  2. Create a new workflow that is triggered when a new Team form is submitted.
  3. Optional: Add an approval process for the leave request to the workflow.

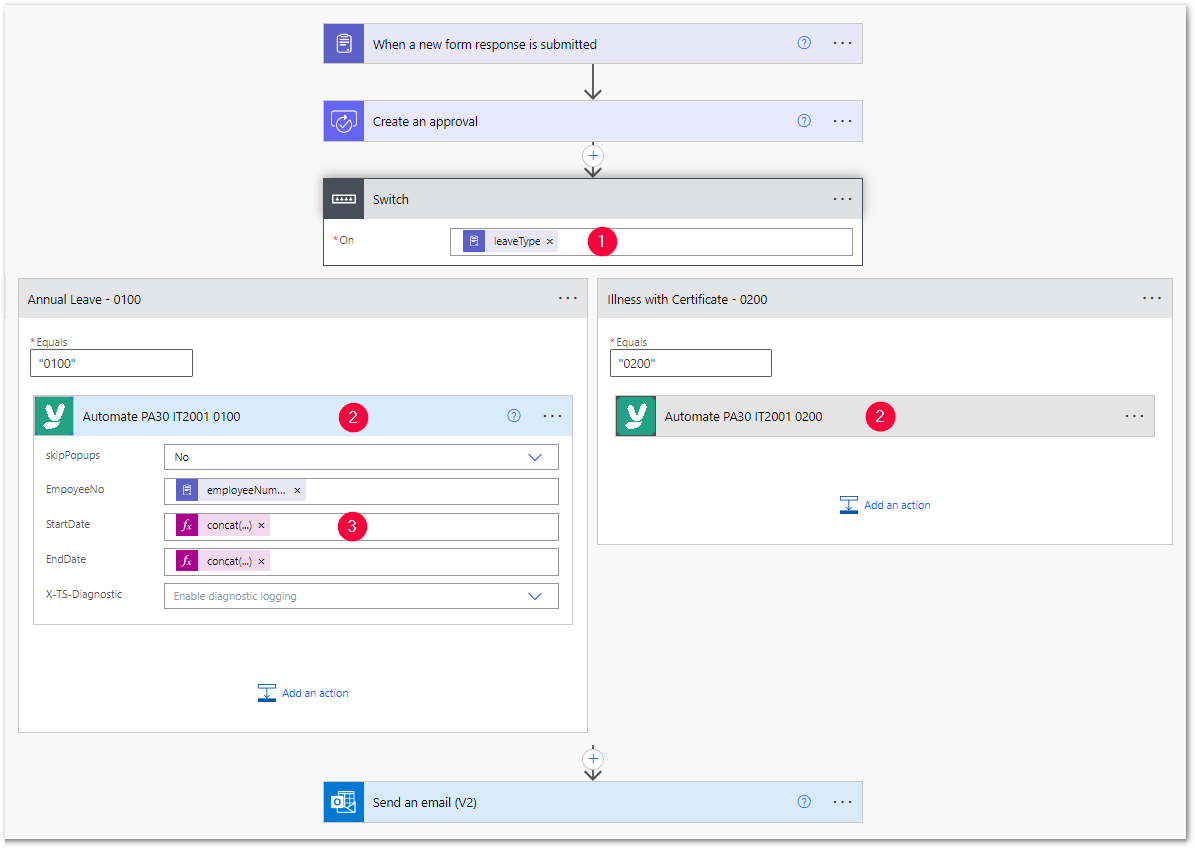

  4. Add a Switch action to the workflow that queries the value of the leave type defined in the Team form .
    teams-workflow
  5. Add the corresponding yunIO connector created in step 1 for each each leave type .
  6. Map the data from the Team form to the input parameters of yunIO .
  7. Make sure the input uses the right format, e.g., dates use the format DD.mm.YYYY.

    Tip

    The following code reformats dates returned by the Teams form from yyyy-MM-dd'T'HH:mm:ss*SSSZZZZ to DD.mm.YYYY:

    #Start date:
    concat(substring(triggerOutputs()?['body/data/startDate'], 8, 2), '.', substring(triggerOutputs()?['body/data/startDate'], 5, 2), '.', substring(triggerOutputs()?['body/data/startDate'], 0, 4))
    #End date:
    concat(substring(triggerOutputs()?['body/data/endDate'], 8, 2), '.', substring(triggerOutputs()?['body/data/endDate'], 5, 2), '.', substring(triggerOutputs()?['body/data/endDate'], 0, 4))

  8. Optional: Send notifications when a sick leave is requested.

  9. Turn on the workflow.

Trigger the Process

  1. Open the Teams form and fill out the details of your sick leave.
    Enter the SAP employee number, select the leave type and the start and end date of the sick leave.
  2. Submit the Teams form.
  3. The Power Automate workflow runs and transfers the details of the sick leave to SAP.

Last update: July 8, 2024
